15m/S Aerospace Industrial Grade Drone For Aerial Emergency Surveillance Patrol

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-610
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Wind Resistance: 6 Max Takeoff Weight: 25kg
Payload: 0~5kg Image Transmission Distance: 10~15km
Motor Wheelbase: 1200mm Type: Industrial Grade Drone
High Light:

15m/s Industrial aerospace drones


Surveillance Patrol Industrial Grade Drone


Industrial Drone For Aerial Emergency

Industrial Grade Drone for Aerial Emergency Surveillance Patrol


Quick Detail

  1. Motor wheelbase: 1200mm
  2. HD Camera: 1080P
  3. Payload: 0~5kg
  4. Wind resistance: 6
  5. Working time: 30~50min
  6. Image transmission distance: 10~15km
  7. Horizontal speed: 0~15m/s
  8. Max takeoff weight: 25kg

Chassis of Drone

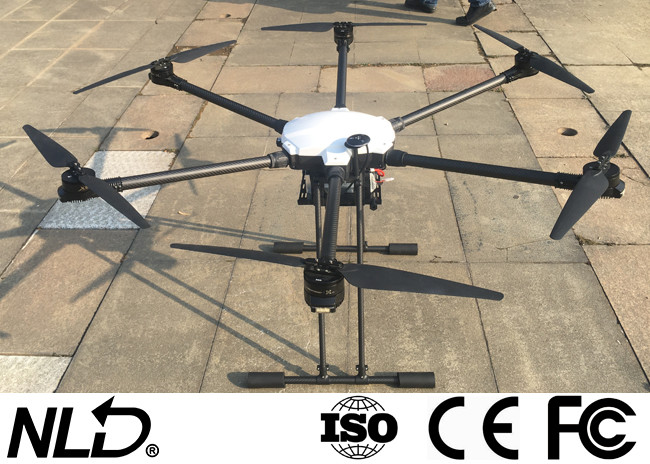

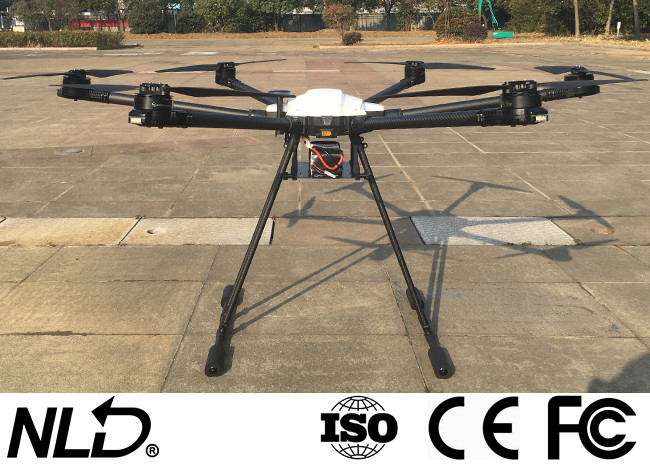

15m/S Aerospace Industrial Grade Drone For Aerial Emergency Surveillance Patrol 0


Suspension components

NGC-C4K: 4K HD optical zoom gimbal

  • Lightweight Gimbal weight 286g
  • High resolution, zoom: 12 million pixels, up to 4K recording; 14 times zoom (3.5 times optical * 4 times digital)
  • High stability Jitter Angle: ±0.01°
  • One-key to center: Double-click the target, center zoom function
  • GPS information record: Superimpose GPS information display and save to subtitle file
  • Available SDK: Sky data interface and ground station SDK is available
  • Object Tracking


General Parameter
Product NGC-C4K: 4K HD optical zoom gimbal
Working voltage 12V-25V
Power 6W
Weight 275g
Size 96*79*120mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 60℃
Storage environment temp. -20℃ ~70℃
Gimbal parameter
Jitter Angle ±0.01°
Installation method Detachable
Controllable rotation range Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
Camera parameter
Sensor CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062

3.5x optical zoom lens F 3.85~13.4mm

Minimum shooting distance: 1mm~3mm (near focus ~ far focus)

Field of view (horizontal): 82~25°

Image storage format JPEG
Working method Video, photo
Fog penetration Electronic fog penetration
Exposure mode Automatic exposure and manual exposure
Minimum illumination Color: 0.5Lux/F2.4
2D noise reduction
3D noise reduction
Shutter speed 1/3- 1/30000s
Exposure Automatic support
Pointing zoom
Pointing zoom range 1~3.5 times optical
Support memory card type Micro SD card 128G (maximum)
