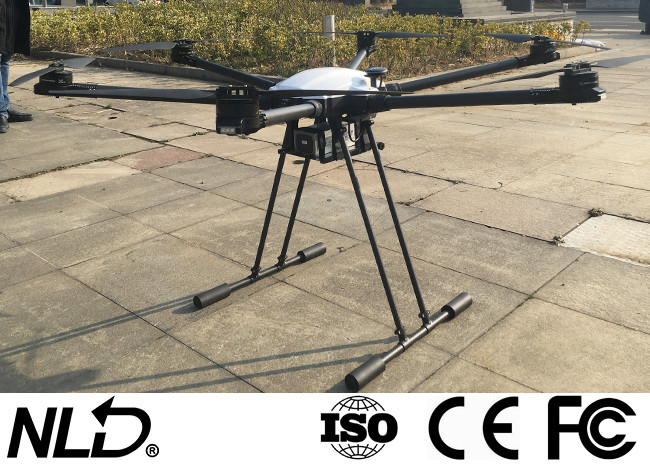

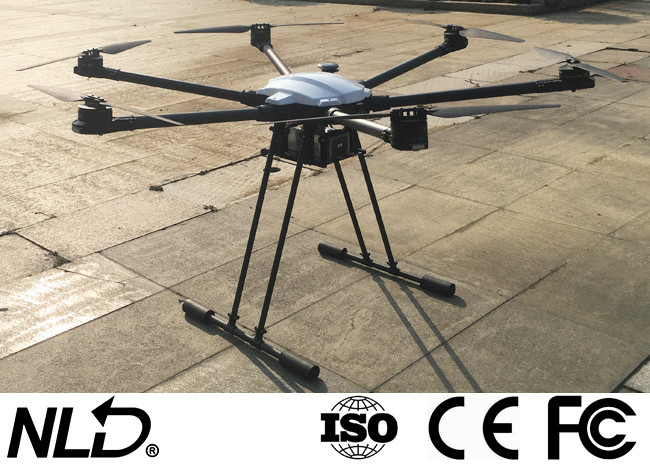

15km Industrial Grade Drone Working Time 30~50min For Power Line Inspection

Horizontal speed

0～15m/s

Motor wheelbase

1200mm

Working time

30~50min

Image transmission distance

10~15km

HD Camera

1080P

Payload

0~5kg

Wind resistance

6

Max takeoff weight

25kg

NGC-C4K: 4K HD optical zoom gimbal

Lightweight Gimbal weight 286g

High resolution, zoom

1. 12 million pixels, up to 4K recording
2. 14 times zoom (3.5 times optical * 4 times digital)

High stability Jitter Angle: ±0.01°

One-key to center

1. Double-click the target, center zoom function

GPS information record

1. Superimpose GPS information display and save to subtitle file

Available SDK

1. Sky data interface and ground station SDK is available

Object Tracking

N2TC-T320 10x optical zoom +Thermal imaging dual-optical three-axis gimbal

N2TC-T320 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, thermal imager, and high-precision professional three-axis stabilizing pod.The pod adopts a high-precision encoder FOC control scheme, which has high stability, small size and weight. Light and powerful features; the visible light camera uses a low-illuminance sensor with 4 million effective pixels; the thermal imaging uses a 320x240 resolution detector with a baffle design. The system supports HDMI picture-in-picture output, local TF storage, dual-channel simultaneous recording, pseudo-color switching, temperature measurement, and multiple picture-in-picture modes.

Functions & Features

1. 10 times visible light + thermal imager Ø
2. Three-axis stabilization pod
3. Multiple thermal imaging pseudo-color modes
4. UART or SBUS command control
5. Multiple picture-in-picture mode, single HDMI output
6. OSD menu adjustment parameters
7. Real-time switching in zero seconds
8. Single TF card,Two-channel simultaneous recording

N3TC-T320 10x optical zoom +320Thermal imaging +1500m range measuring three-light pod

N3TC-T320 is an integrated 10x optical zoom camera, 320 thermal imager and 1500m laser ranging high-precision special three-axis stabilization pod. The pod adopts compact design and has the characteristics of high stability, small size, light weight and low power consumption. Visible light camera adopts HD sensor with 4 million effective pixels; thermal imaging adopts imported 320x240 resolution detector and Built-in baffle; 1500 meters high precision ranging function. Provide software ground station, support picture-in-picture display dual-channel video, control PTZ and camera directly via network, support local TF storage and network file read and write operation, support dual-channel synchronous video, support a variety of picture-in-picture mode and false color switch.

Functions & Features

1. 10 times visible light + thermal imager
2. Three-axis stabilization pod
3. Multiple pseudo-color thermal imaging modes
4. 1500 meters laser ranging, video overlay
5. Multiple picture-in-picture mode
6. Ground-side software display and control integrated
7. Single TF card,dual-channel synchronous video
8. 1080P network output, two-way communication
