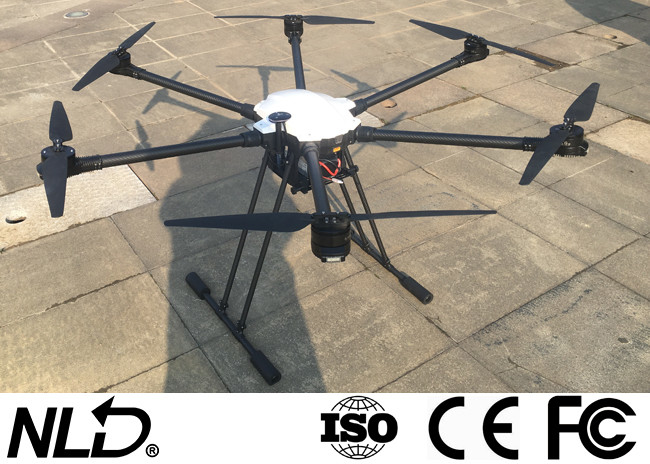

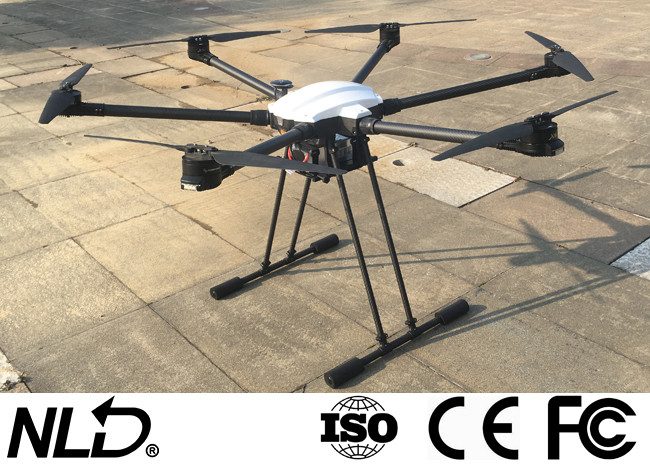

NPA-610 Industrial Grade Drone With Thermal Camera For Power Inspection

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-610
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Industrial Grade Drone For Power Inspection HD Camera: 1080P
Image Transmission Distance: 10~15km Working Time: 30~50min
Payload: 0~5kg Horizontal Speed: 0~15m/s
High Light:

1080P automated industrial drones

,

Industrial Drone With Thermal Camera

,

Industrial Drone For Power Inspection

NPA-610 Industrial Grade Drone with Thermal Camera for Power Inspection



Characters
  • Motor wheelbase: 1200mm
  • Image transmission distance: 10~15km
  • HD Camera: 1080P
  • Payload: 0~5kg
  • Max takeoff weight: 25kg
  • Wind resistance: 6
  • Working time: 30~50min
  • Horizontal speed: 0~15m/s

Chassis of Drone

  • Fully waterproof fuselage: The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright white or black coating, with beautiful shape and eye-catching color.
  • The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.
Application
  • 3D Sand Table Modeling of Emergency Disaster
  • Aerial emergency surveillance patrol
  • Emergency communication network relay
  • Road patrol
  • Power inspection
  • River conservancy inspection



NPA-610 Industrial Grade Drone With Thermal Camera For Power Inspection 0



Suspension components

N3TC-T320

10x optical zoom +320Thermal imaging +1500m range measuring three-light pod

  • N3TC-T320 is an integrated 10x optical zoom camera, 320 thermal imager and 1500m laser ranging high-precision special three-axis stabilization pod.
  • The pod adopts compact design and has the characteristics of high stability, small size, light weight and low power consumption.
  • Visible light camera adopts HD sensor with 4 million effective pixels; thermal imaging adopts imported 320x240 resolution detector and Built-in baffle; 1500 meters high precision ranging function.
  • Provide software ground station, support picture-in-picture display dual-channel video, control PTZ and camera directly via network, support local TF storage and network file read and write operation, support dual-channel synchronous video, support a variety of picture-in-picture mode and false color switch.

N2TC-T640-4K

20x optical zoom 4K +640Thermal imaging two-light pod

  • N2TC-T640-4K is a 3-axis high-precision gimbal with 20x optical zoom SONY RGB camera, it integrated with 20x optical zoom EO sensor which provides not only 4K IP output but also 4K picture & video storage and with a 25mm lens 640*480 IR thermal sensor.
  • It supports IR thermal and visible PIP switch, IR color palette switch, photographing and video, target tracking, thermal digital zoom.
  • When the external GPS and time input, GPS coordinate and shooting time can be saved in image file, OSD can display GPS and real-time as well.
  • It features aluminum alloy housing and anti-interference.
  • The 3 axis gimbal can achieve stabilization in yaw, roll and pitch.
  • The integrated design of damping system and gimbal can greatly reduce mechanical vibration.
  • It is widely used in UAV industries of public security, electric power, fire fighting, zoom aerial photography and other industrial applications.
