| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-610 |
| Minimum Order Quantity: | 1sets |
| Price: | Negotibal |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~30days |
| Supply Ability: | 100sets/per month |
| Water Tank: | 16L | Battery: | 6S 22000mAh |
|---|---|---|---|
| Remote Controller: | 1080P Digital HD Image Transmission | Obstacle Avoidance Radar: | Optional |
| Terrain Following Radar: | Optional | RTK: | Optional |
| High Light: | 16L pesticide drone sprayer,1080P pesticide drone sprayer,6S 22000mAh aerial drone |
||

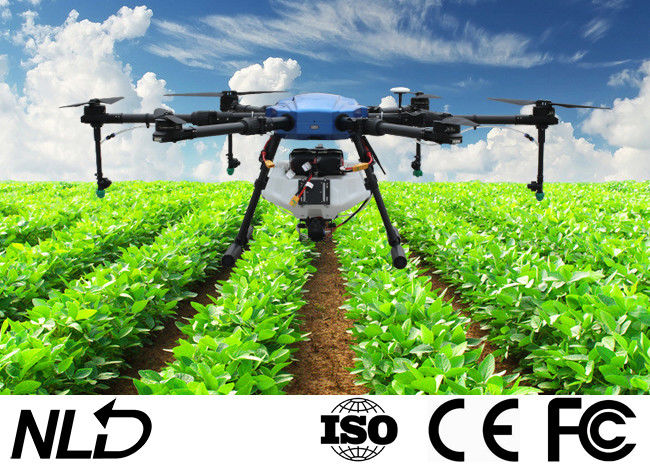

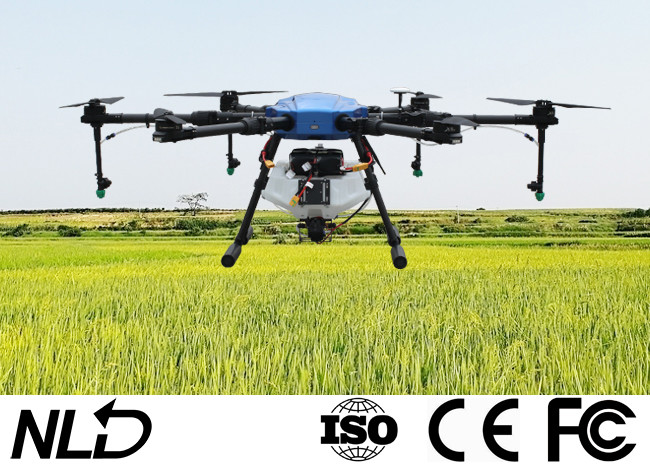

16L Agriculutre Drone for Spraying Pesticides 6 Rotors with FPV Camera Image transmission
Quick Details:
1. One key take off and land;
2. Autonomous fly with way points controlled by APP;
3. Low voltage, no signal, return automatically;
4. Fail safe protection;
5. Intelligent automatic obstacle avoidance;
6. Intelligent terrain following
7. FPV camera
Specification:
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | |||||
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | |||||
| Wind resistance | 4～5 | 4～5 | |||||
| Motor | 6*180KV | 6*100KV | |||||
| Electronic Speed Control | 80A | 80A | |||||
| Motor applicable temperature | -20～50 | -20～50 | |||||
| Foldable propeller | 2388 | 3090 | |||||
| Pesticide Tank | 10L | 16L | |||||
| Take-off Capacity | 30kg | 42kg | |||||
| Flying Time (with payload) | 15~20min | 15~20min | |||||
| Flying distance | 5000m | 5000m | |||||
| Working distance | 2000m | 2000m | |||||
| Flying Speed | 0~10m/s | 0~10m/s | |||||
| Spray Width | 3.5~4m | 3.5~4m | |||||
| Spray Flow | 1.2~2L/min | 1.2~2L/min | |||||
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | |||||
| Expand Size | 1992*1992*562mm | 2428*2428*600mm | |||||
| Wheelbase | 1407mm | 1648mm | |||||
| Folded Size | 945*848*562mm | 1102*979*600mm | |||||
| Battery / Quantity | 6S/16000mAh / 2pcs | 6S 22000mAh / 2pcs | |||||
| FPV Camera | Optional | Optional | |||||
| Obstacle avoidance radar | Optional | Optional | |||||
| Terrain following radar | Optional | Optional | |||||
| RTK centimeter positioning | Optional | Optional |
Ground workstation
1. Android System with Ground workstation;
2. Control and adjust drone's flying parameter;
3. Google map;
4. FPV camera video
