Name: | Spraying Drone Uav | Capacity: | 26L |
---|---|---|---|
Psticides Tank: | Pluggable Tank | Battery: | 14S Battery Pluggable Battery |
Number Of Nozzles: | 8 Nozzles | Work Time: | 15~20min With Payload |
High Light: | UAV spray drone for agriculture,26L spray drone for agriculture,ISO9001 6 Rotors aerial camera drone |

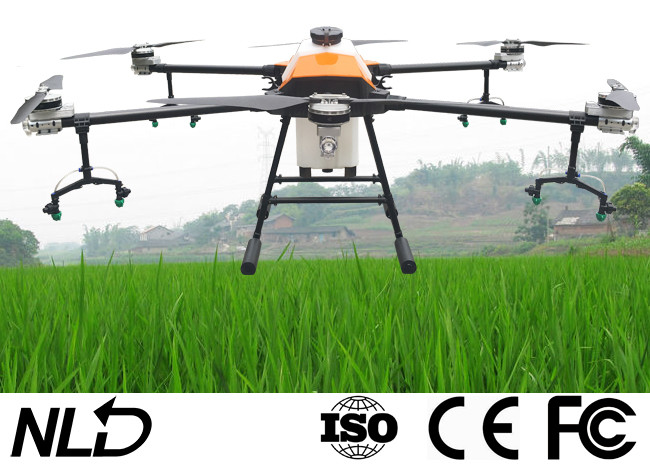

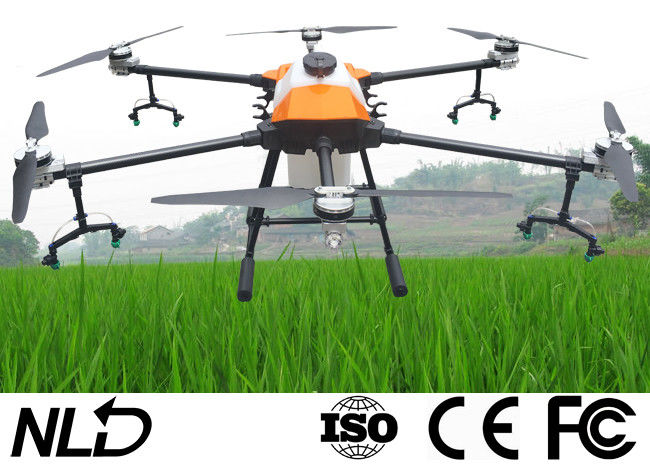

Newlandle 6 Rotors 26L Spraying Drone UAV for Farm Vegetable Rice Fruit Tree Crop
Quick details:
1. One key take off and land;
2. Autonomous fly with way points controlled by APP;
3. Low voltage, low signal, return automatically;
4. Fail safe protection;
5. Spray flow control;
Specification:
1. Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
2. The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water;
3. Intelligent automatic obstacle avoidance, terrain following;
4. RTK centimeter positioning;
Model | NLB626 |
Rotor | 6 |
Hovering accuracy (horizontal) | +/- 1.5m |
Hovering accuracy (vertical) | +/- 0.5m |
Wind resistance | 4~5 |
Motor | 6*100KV |
Electronic Speed Control (ESC) | 150A |
Motor applicable temperature | -20~50 |
Foldable propeller | 3612 |
Pesticide Tank | 26L |
Take-off Capacity | 63kg |
Flying Time (with payload) | 15~20min |
Flying distance | 5000m |
Working distance | 2000m |
Flying Speed | 0~10m/s |
Spray Width | 3.5~4m |
Spray Flow | 1.2~2L/min |
Spray Efficiency | 1500~2400sqm/min |
Wheelbase | 2018mm |
Folded Size | 1150*600*700mm |
Battery / Quantity | 14S/25000mAh |
FPV Camera | Optional |
Obstacle avoidance radar | Optional |
Terrain following radar | Optional |
RTK centimeter positioning | Optional |
App Ground workstation
1. Remote controller with 5.5" high brightness dispaly, high definition;
2. 1080P HD image transmission, 10km distance;
3. Remote controller has android system with ground workstation, control and adjust the flying parameter;
4. Remote controller provide google map, check FPV video;
5. Support hand held GPS dot device, and RTK dot device;
6. Remote controller has gigh performance lithiium battery, 6 hours long life;
7. Setup atuomatic or semi-automatic AB working mode, adjust the flying height, spray mode, spray speed;
8. Support automatic fail-sail back, job record, flight time, flight area data record.
Centimeter level precision positoning system (optional)
1. We can supply RTK system as your request, high precision navigation and positioning system;
2. Real time dynamic differential technology to improve the three dimensional positioning accuracy from meters to centimeters;
3. Strong anti-magnetic interference, powerful multi-path effect and interference suppression technology;
4. It has dual antennas wth high precision orientation, high sensitivity, stable and reliable;
5. Provide radio base station for foreign customers.
RTK radio base station
1. The mushroom antenna of the base station needs to be elevated, it is to receive satellite signals;
2. The radio antenna of the base station needs to be elevated, and it needs to send signals to the RTK on the airborne terminal. If it is blocked, it will affect the transmission distance and signal quality;
3. Use RTK in an open environment free from wireless interference;
4. Do not over-fold or pull the RTK antenna cable during installation;
5. During use, please make sure that the dual antennas of the RTK are not blocked;
6. Hot plugging is prohibited for this product (that is, the plug of the module cannot be plugged and unplugged when the flight controller is powered on).
