| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-420-1 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Name: | Pesticide Spraying Drone | Capacity: | 20Liters |
|---|---|---|---|
| Usage: | Liquid Spraying | Battery: | 14S / 12S / 6S Lithium |
| Waterproof: | Main Body | Material: | Carbon Fiber And Aluminum Material |
| High Light: | ISO9001 UAV Drones Used For Spraying Pesticides,ISO9001 20L drones used for spraying pesticides,ISO9001 4 Rotors spraying drone agriculture |
||

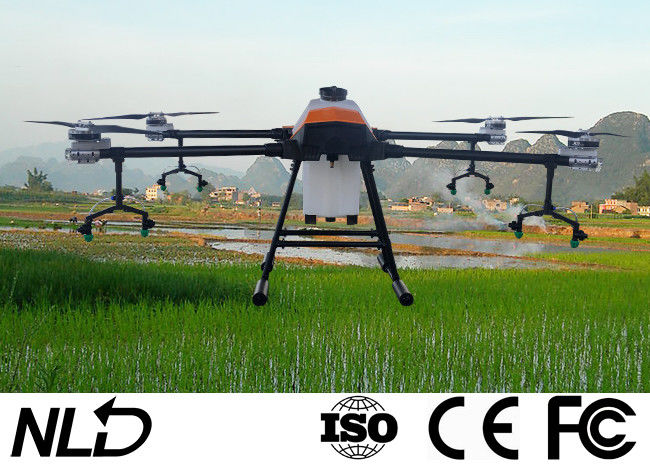

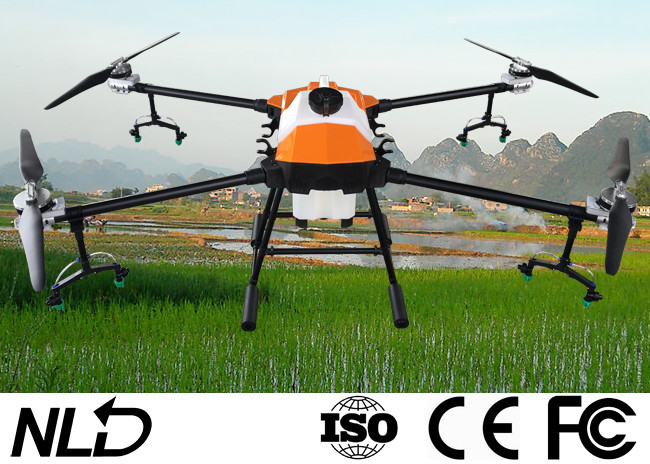

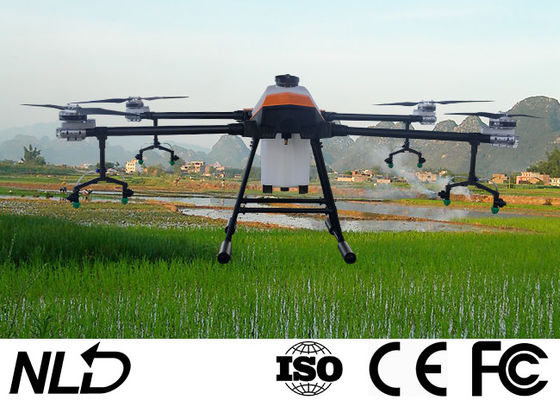

4 Rotors 20Liters New Style Pesticide Sprayer UAV Drone For Liquid Spraying with Camera Can Take Photos and Videos
Quick details:
Waterproof: The main body and frame;
Works for agriculture liguid spraying;
Can take photos and videos;
Specification:
| No. | Description | NLB420 | NLB620 | NLB626 | NLB630 |
| 1 | Aircraft Structure | 4 rotors | |||
| 2 | Flight Controller | √ | |||
| 3 | Dot Device | √ | |||
| 7 | Liquid Tank | 20L | |||
| 8 | Spray System | 1 Water pump + flow meter + water pipe + 8 nozzle | |||
| 9 | Remote Controller | Remote control 5.5” screen + Android + ground workstation + digital transmission + image transmission | |||
| 10 | Charger | Dual channel charger | |||
| 11 | Battery | 14S 22000mAh | |||
| 12 | Aluminum Case | √ | |||
| Quick Details | |||||
| Flight controller: | 2CPU with 3 IMU | ||||
| Material: | Carbon Fiber + Aviation Aluminum material | ||||
| Flight time: | Around 20minutes | ||||
| Spray width: | 3~5m | ||||
| Spray efficiency: | 11~18 Ha/hour | ||||
| Lead time: | 15days | ||||
| Tank: | 20/26/30L | ||||
| Work mode: | Manual or Workstation | ||||
| Model | NLB420 |
| Rotor | 4 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 4*100KV |
| Electronic Speed Control | 150A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3612 |
| Pesticide Tank | 20L |
| Take-off Capacity | 42kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2029mm |
| Folded Size | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
Remote controller with App Ground workstation
1. Remote controller with screen dispaly 5.5" high-brightness high-definition and android system, Google map, flying parameter adjustment.
2. It support automatic automatic AB working mode, dot device, flying height, spray mode, flying speed, terrain following, obstacle avoidance.
3. Integrated digital image transmission system, supports video such as cameras, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function.
4. long transmission distance, long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
5. Industrial equipment level protection, it work in harsh outdoor conditions, protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.
6. The display can clearly view real-time display information under strong light conditions.
7. Removable high-performance lithium battery, the battery, low internal resistance, more than 6 hours long battery life, and stable battery curve provide stable power, and can quickly replace the battery to ensure continuous operation.
