| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-620-1 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Name: | Agri Drone | Capacity: | 20L |
|---|---|---|---|
| Nozzle: | 8 Nozzles | Battery: | Lipo Battery |
| Flight Controller: | 2 CPU + 3 IMU | Flying Time: | 20min With Payload |
| High Light: | 20L Pesticide Spraying Drone,6 Propellers Pesticide Spraying Drone,FCC Unmanned Aerial Vehicle Drone |
||

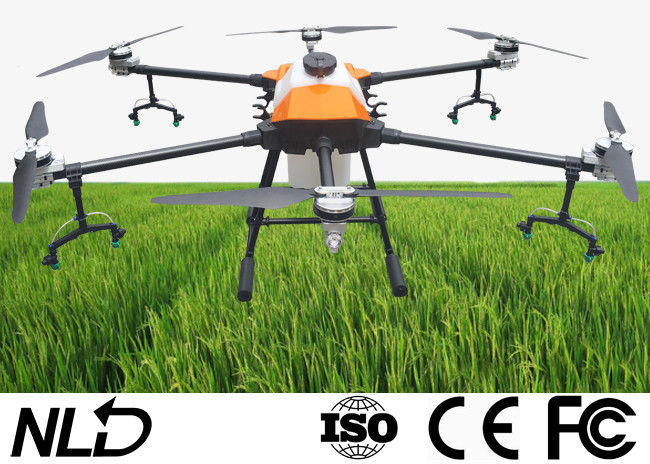

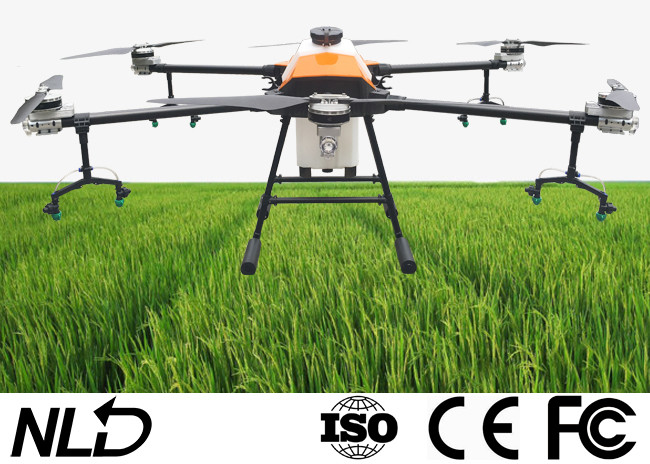

6 Propellers 20L Capacity Agri Drone Prfessional Unmanned Aerial Vehicle for Pesticide Spraying
Quick details:
Drone frame: 6 rotors;
Flight controller: two CPU with three IMU;
GPS Positioning;
Water pump with flow meter, water pipe and nozzle
Remote controller
Specification:
| No. | Description | NLB620 | |||
| 1 | UAV Frame | 6 rotors | |||
| 2 | Flight Controller | With | |||
| 3 | GPS Positioning | With | |||
| 7 | Pesticide Tank | 20L | |||
| 8 | Spray System | Water pump & flow meter & water pipe & 8 nozzles | |||
| 9 | Remote Controller | Android + ground workstation digital transmission 5.5” screen | |||
| 10 | Battery Charger | Dual channel battery charger | |||
| 11 | Battery | 14S 22000mAh | |||
| 12 | Aluminum Case | With | |||
| Quick Details | |||||
| Flight controller: | 2CPU + 3 IMU | ||||
| Material: | Carbon Fiber & Aluminum | ||||
| Flight time: | 15~20minutes | ||||
| Spray width: | 3~5m | ||||
| Spray efficiency: | 11~18 Ha/hour | ||||
| Lead time: | 15days | ||||
| Tank: | 20/26/30L | ||||
| Work mode: | Manual & Workstation | ||||
| Model | NLB620 |
| Rotor | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 6*110KV |
| Electronic Speed Control | 150A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3411 |
| Pesticide Tank | 20L |
| Take-off Capacity | 54kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2018mm |
| Folded Size | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
App Ground workstation
1. Android mobile system with ground workstation;
2. 5.5" high brightness display, it can control and adjust the flying parameter;
3. We can provide google map on the display;
4. Support FPV video floating window function;
5. Support hand held GPS dot device or RTK dot device;
6. Setup atuomatic or semi-automatic AB working mode on the display;
8. Adjust the flying height, spray mode, spray speed on the remote controller;
9. Support automatic fail-sail back function;
10. Support job record, flight time, flight area data record.
Obstacle avoidance radar (optional)
1. We support to measure the relative distance between the UAV and the obstacle in front of the flight;
2. We support 2.4GHz radar technology, all weather work;
3. It has high sensitivity, far detection distance;
4. It has fast and stable signal transmission;
5. It has strong environmental adaptability, strong light, high temperature, fot, dust, wind and night.
