| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-630-1 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Name: | 30L Agriculture Dron | Psticides Tank: | 30L Pluggable |
|---|---|---|---|
| Battery: | Pluggable Battery | Nozzles: | 8 Nozzles |
| Obstacle Avoidance: | Optional | Style: | New Style |
| High Light: | ISO9001 30L Pesticide Spraying Drone,8 Nozzle Pesticide Spraying Drone,ISO9001 6 Rotors agriculture spraying drone |
||

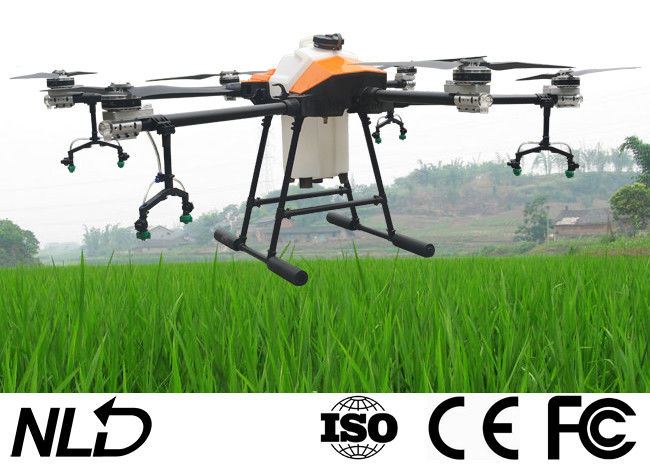

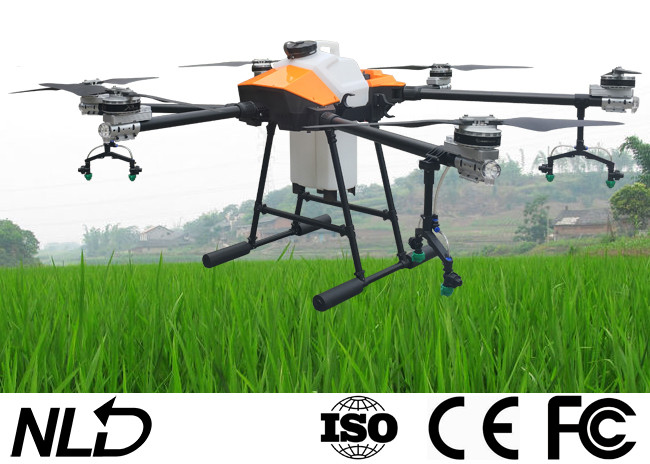

30L Agriculture Spraying Drone Pesticides Tank Pluggable Battery Pluggable Easy for Operation
Quick details:
Aircraft: 6 rotors with flight controller;
Pesticides tank: Pluggable;
Battery: Pluggable 14S 28000mAh;
Remote control: 5.5" screen Android, App ground station
Specification:
| Model | NLB420 | NLB620 | NLB630 | |
| Pesticide Tank | Pluggable 20L | Pluggable 20L | Pluggable 30L | |
| Battery Pluggable | 14S/22000mAh | 14S/22000mAh | 14S/28000mAh | |
| Rotor | 4 | 6 | 6 | |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Motor | 4*100KV | 6*110KV | 6*100KV | |
| Electronic Speed Control | 150A | 150A | 150A | |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | |
| Foldable propeller | 3612 | 3411 | 3612 | |
| Take-off Capacity | 42kg | 54kg | 63kg | |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min | |
| Flying distance | 5000m | 5000m | 5000m | |
| Working distance | 2000m | 2000m | 2000m | |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m | |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | |
| Wheelbase | 2029mm | 2018mm | 2018mm | |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm | |
| FPV Camera | Optional | Optional | Optional | |
| Obstacle avoidance radar | Optional | Optional | Optional | |
| Terrain following radar | Optional | Optional | Optional | |
| RTK centimeter positioning | Optional | Optional | Optional |
Characteristic:
1. Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
2. Waterproof: Except the motor and battery, the body of the aircraft is dust-proof and waterproof;
3. Remote controller 5.5" high brightness dispaly, high definition display, it is protected from dust and splashes in the fuselage;
4. 1080P HD image transmission, 10km distance;
5. Android system with ground workstation, provide google map, and FPV video;
6. Support hand held GPS dot device, or RTK dot device, high performance lithiium battery, 6 hours long life;
7. Setup atuomatic or semi-automatic AB working mode, adjust the flying height, spray mode, spray speed;
8. Support automatic fail-sail back, job record, flight time, flight area data record.
Obstacle avoidance radar (optional)
Centimeter level precision positoning system (optional)
Ground defense radar (optional)
