| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-416 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15days |
| Supply Ability: | 100sets/month |
| Pesticide Tank: | 16Liters | Usage: | Agriculture Spraying |
|---|---|---|---|
| Image Transmission: | 10km | Camera: | FPV Camera |
| FC: | Flight Controller | ESC: | Electronic Speed Control |
| High Light: | ISO9001 20 Minutes Pesticide Spraying Drone,10km Pesticide Spraying Drone,ISO9001 16L sprayer drone for farming |
||

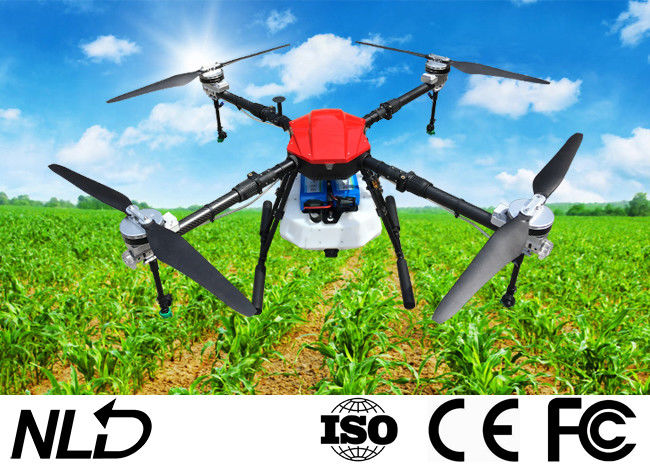

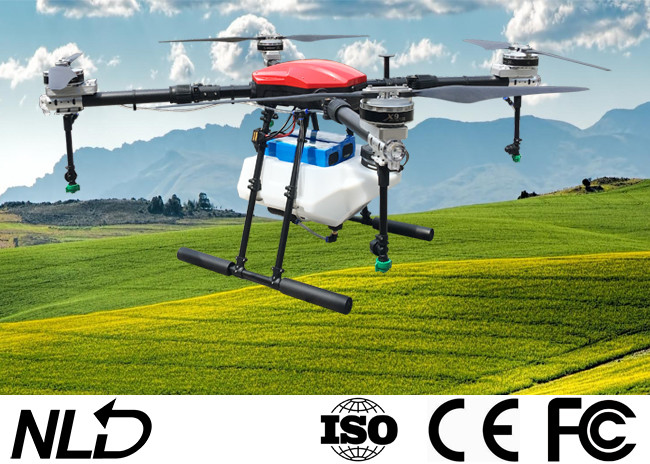

Pesticide Tank 16L Agriculture Spraying Drone FPV Camera 10km Image Transmission First Person View
Quick details:
Flying distance:>5000m;
Working distance: >2000m;
Flying speed: 0~10m/s;
Spray Width: 3~3.5m;
Spray Flow: 1.2~2L/minute.
Specification:
| Model | NLA-410 | NLA-416 | NLA-610 | NLA-616 | NLA-622 | NLA-630 | NLA-650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
| Flight Controller | 2CPU + 3 IMU | 2CPU + 3 IMU | |||||
| GPS Dot Device | √ | √ | √ | √ | √ | ||
|
Hovering accuracy Horizontal / Vertical |
+/- 1.5 / 0.5 m | +/- 1.5 / 0.5 m | |||||
| Wind resistance | 4～5 | 4～5 | |||||
| Motor | 4*110KV | 6*100KV | |||||
| Electronic Speed Control | 120A | 80A | |||||
| Motor applicable temperature | -20～50°C | -20～50°C | |||||
| Foldable propeller | 3411 | 3090 | |||||
| Pesticide Tank | 16L | 16L | 22L | 30L | 50L | ||
| Take-off Capacity | 38kgs | 42kgs | |||||
| Flying Time (with payload) | 15~20minutes | 15~20minutes | |||||
| Spray Efficiency | 1000~2100sqm/min | 1500~2400sqm/min | |||||
| Expand Size | 1848*1848*628mm | 2428*2428*600mm | |||||
| Wheelbase | 1416mm | 1648mm | |||||
| Folded Size | 648*671*628mm | 1102*979*600mm | |||||
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs | |||||
| FPV Camera | √ | √ | |||||
|
Terrain following radar Obstacle avoidance radar RTK centimeter positioning |
Optional | Optional | Optional | Optional | Optional |
Remoter Controller
1. 5.5“ high brightness definition display can clearly view information under strong light conditions;
2. Removable lithium battery with high performance, 6 hours long life, it can be replaced quickly to ensure continous operation;
3. Android system with ground station, it supply google map and FPV video;
4. Support hand held GPS dot device, RTK dot device, drone GPS dot and Map dot for choosing, it can set up automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, automatic terrain following, automatic obstacle avoidance, course adjustment, fail-sail back. etc. service.
