| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-630 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15 works day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets/month |
| Material: | Aluminum & Carbon | Rotor: | 6 Rotor |
|---|---|---|---|
| Pesticide Tank: | 30L | Remote Controller: | 10km 5.5" Screen |
| Battery: | 2*30000mAh 6S | Flight Controller: | 2 CPU + 3 IMU |
| High Light: | ISO9001 30L Pesticide Spraying Drone,ISO9001 15 Minutes Pesticide Spraying Drone,ISO9001 FCC uav drone |
||

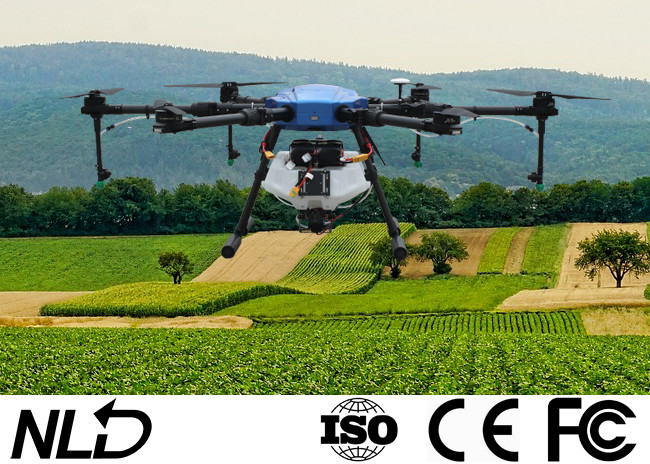

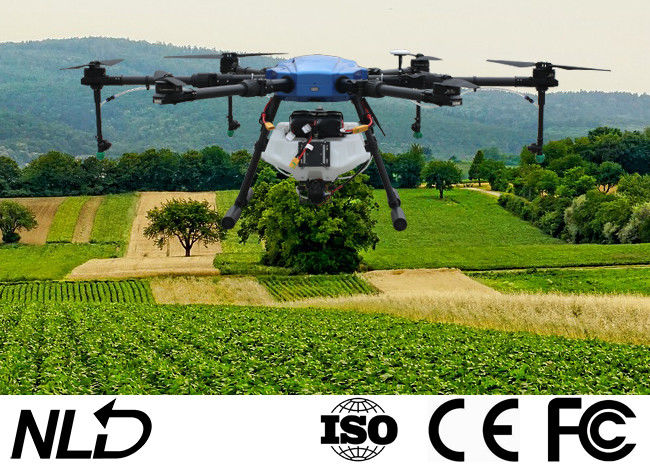

30L Water Tank Agriculture Spray Drone Six Rotor Brushless Motor Flight Time 15 Minutes
Quick Details:
Name: Agriculture Spray Drone
Pesiticide Tank: 30L
Spray System: Water pump/flow meter/water pipe/nozzle
Battery Charger: Dual channel charger
Brand: NLD
Specification:
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | |||||
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | |||||
| Wind resistance | 4～5 | 4～5 | |||||
| Motor | |||||||
| Electronic Speed Control | |||||||
| Motor applicable temperature | -20～50 | -20～50 | |||||
| Foldable propeller | |||||||
| Pesticide Tank | 30L | 50L | |||||
| Take-off Capacity | |||||||
| Flying Time (with payload) | 15~20min | 15~20min | |||||
| Flying distance | 5000m | 5000m | |||||
| Working distance | 2000m | 2000m | |||||
| Flying Speed | 0~10m/s | 0~10m/s | |||||
| Spray Width | 3.5~4.5m | 3.5~5m | |||||
| Spray Flow | 1.5~2.5L/min | 1.5~3L/min | |||||
| Spray Efficiency | |||||||
| Expand Size | |||||||
| Wheelbase | |||||||
| Folded Size | |||||||
| Battery / Quantity | 6S 30000mAh / 2pcs | 12S 27000mAh / 2pcs | |||||
| FPV Camera | Optional | Optional | |||||
| Obstacle avoidance radar | Optional | Optional | |||||
| Terrain following radar | Optional | Optional | |||||
| RTK centimeter positioning | Optional | Optional |
Remote Controller
1. 10km digital image transmission;
2. With 5.5" high brightness screen;
3. Ground station with google map;
4. Unmanned aerial vehicles work in harsh outdoor conditions;
5. Highlight HD display;
6. Removable high performance lithium battery;
