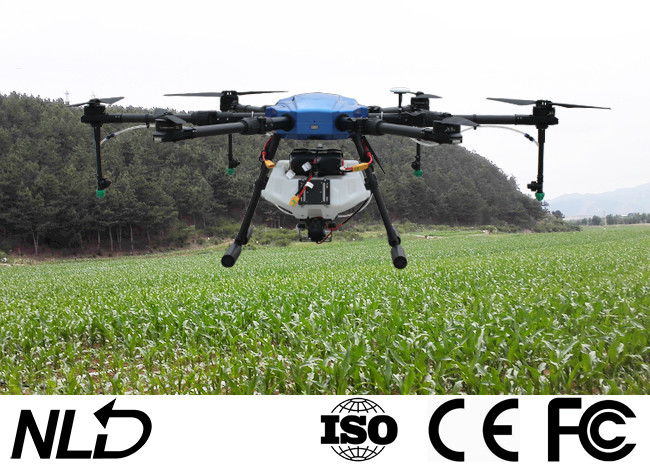

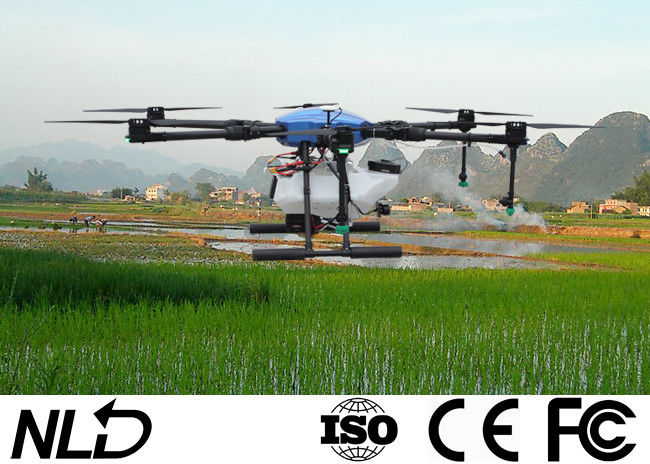

14S Lithium Battery 8 Axis 2000m Farming Spray Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-850-1
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Case
Delivery Time: 15~30days
Supply Ability: 100sets/month
Pesticide Tank: 110 Pounds Name: 8 Rotors Agriculture Drone
Radar: Terrain Following Radar Lead Time: 15~20days
Work Method: Ground Work Station Battery: 14S Lithium Battery
High Light:

2000m Farming Spray Drone

,

NLD 8 Axis farming spray drone

,

14S Lithium Battery pesticide drone

8 Axis 110 Pound Pesticides Tank Agriculture Drone High Efficiency Large Spraying Volume With Terrain Following Radar



Quick Details:

1. Horizontal hovering accuracy: +/-1.5m

2. Vertical hovering accuracy: +/- 0.5m

3. Capacity: Max 50L (110pound) Pesticides

4. Flight time: 15~20min with payload

5. Remote controller: 10km with 5.5" screen with Android system

6. Wind resistance: 4~5

7. Motor applicable temperature: -20~50 degree

14S Lithium Battery 8 Axis 2000m Farming Spray Drone 0

Specification:

Model NLA410 NLA416 NLA610 NLA616 NLA622 NLA630 NLA850
Rotor 4axis 4axis 6axis 6axis 6axis 6axis 8axis
Flying distance 5000m 5000m 5000m 5000m 5000m 5000m 5000m
Working distance 2000m 2000m 2000m 2000m 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s     0~10m/s 0~10m/s
FPV Camera Optional Optional Optional     Optional Optional
RTK centimeter positioning Optional Optional Optional     Optional Optional
Terrain following radar Optional Optional Optional     Optional Optional
Obstacle avoidance radar Optional Optional Optional     Optional Optional
Spray Width 3~3.5m 3~3.5m 3.5~4m     3.5~4.5m 3.5~5m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min     1.5~2.5L/min 1.5~3L/min
Spray Efficiency 1000~2100sqm/min 1000~2100sqm/min 1500~2400sqm/min
Expand Size 1780x1780x567 1848x1848x628 1992x1992x562
Wheelbase 1362 1416 1407
Folded Size 700x658x567 648x671x628 945x848x562
Battery / Quantity 6S/16000mAh*2 6S/22000mAh*2 6S/16000mAh*2     6S 30000mAh / 2pcs 14S 27000mAh / 2pcs



Intelligent
a). Intelligent terrain following;

b). Autonomous fly with way points controlled by Mobile phone APP;

c). Automatic obstacle avoidance;

d). Low voltage return automatically;

e). No signal, return automatically;

f ). Fail safe protection;

g). Spray flow control;

h). One-key take off & land,

i). FPV Camera;

j). RTK centimeter positioning.



App Workstartion:

14S Lithium Battery 8 Axis 2000m Farming Spray Drone 1

1. Android system work startion;

2. Control and adjust flying parameter;

3. Google map;

4. FPV video;

5. Terrain following radar adjust;

6. Control flying speed and spray width



Ground Defense Radar

14S Lithium Battery 8 Axis 2000m Farming Spray Drone 2

1. Millimeter-wave radar technology;

2. Adjust the flight height according to the terrain;

3. Stable detection performance and good evironment practicality;

4. Strong anti-interference ability;

5. No affected by light;

6. All days work.
